MV Cable Accessories
Manufactured using advanced German technology and high-quality Silicone LSR materials, our accessories deliver precision, durability, and exceptional electrical performance. The tool-free installation process features a slip-on joint body with a geometrical stress control system, ensuring quick and secure assembly on site.
Suitable for indoor, outdoor, underground, and water-exposed environments, as well as installation in ducts, Bahra Electric Cable Accessories provide versatile, efficient, and dependable solutions for all medium voltage applications.
Download Catalogue
Product Range
01

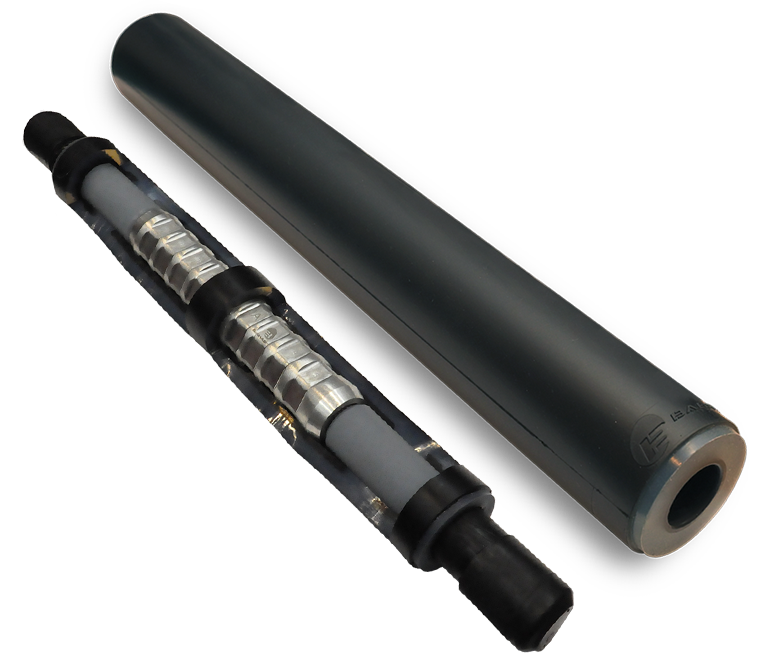

Straight Joints (JS), up to 36kV
- IEC 60502-4, IEEE 404, CENELEC HD 629.1, SEC SDMS-01 & SDMS-02
- Wide cross-section range of cables from 50mm2 to 800mm2
- Quick, safe and easy assembly
- Slip on Joint Body with Geometrical stress control system
- Ready for immediate operation
- No special tools
- Indoor
- Outdoor
- Underground
- Water
- Installation ducts
- Ductwork
- Conductor connector
- Metallic shielded kit
- Constant force
- Spring
- Armour connection kit
- Installation instructions
- Sealing kit
- Accessories
02

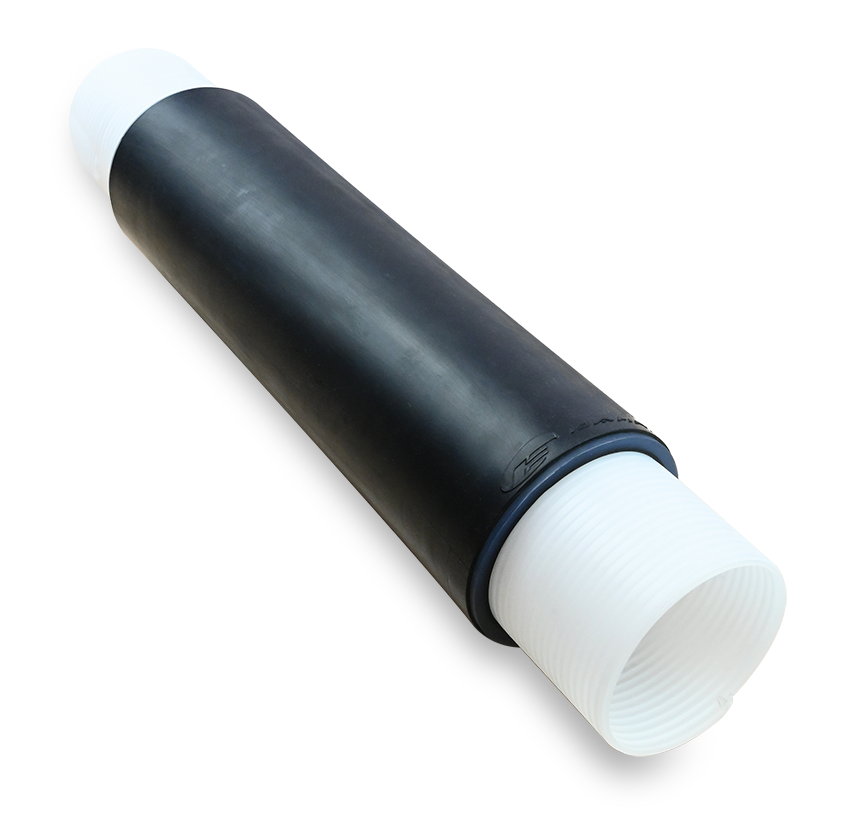

Straight Joints Cold Shrink (JSC), up to 36kV
- IEC 60502-4, IEEE 404, CENELEC HD 629.1, SEC SDMS-01 & SDMS-02
- Wide cross-section range of cables from 50mm2 to 800mm2
- Quick, easy assembly using the cold shrink technology
- Slip on Joint Body with Geometrical stress control system
- Ready for immediate operation
- No special tools
- Available to work with the Mechanical Connector
- Indoor
- Outdoor
- Underground
- Water
- Installation ducts
- Ductwork
- Conductor connector
- Metallic shielded kit
- Constant force
- Spring
- Armour connection kit
- Installation instructions
- Sealing kit
- Accessories
03

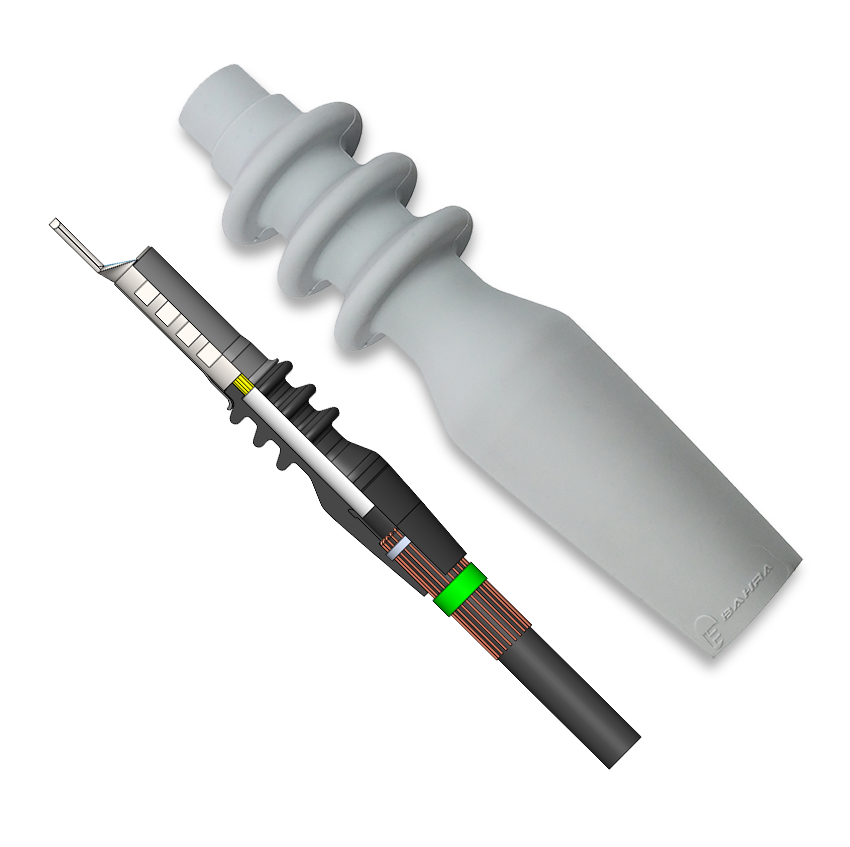

Indoor Terminations (TI), up to 36kV
- IEC 60502-4, IEEE 404, CENELEC HD 629.1, SEC SDMS-01 & SDMS-02
- Wide cross-section range: suitable for cables from 50 mm² to 800 mm²
- Silicone slip-on components for quick, safe, and easy assembly
- One-piece design with integrated geometric stress control system
- Ready for immediate operation
- Long creepage distance thanks to optimized shed arrangement
- Indoor panels
- Air insulated switch gear or transformer
- One-piece slip-on silicone cable terminations with geometry
- Stress control element
- Sealing tape
- Assembly instructions
- Compression or mechanical cable lugs
- Earthing kit
- Antitracking tube
- Trifurcating boot
- Traceability ID marker
- Silicone grease
- Straight boot
04

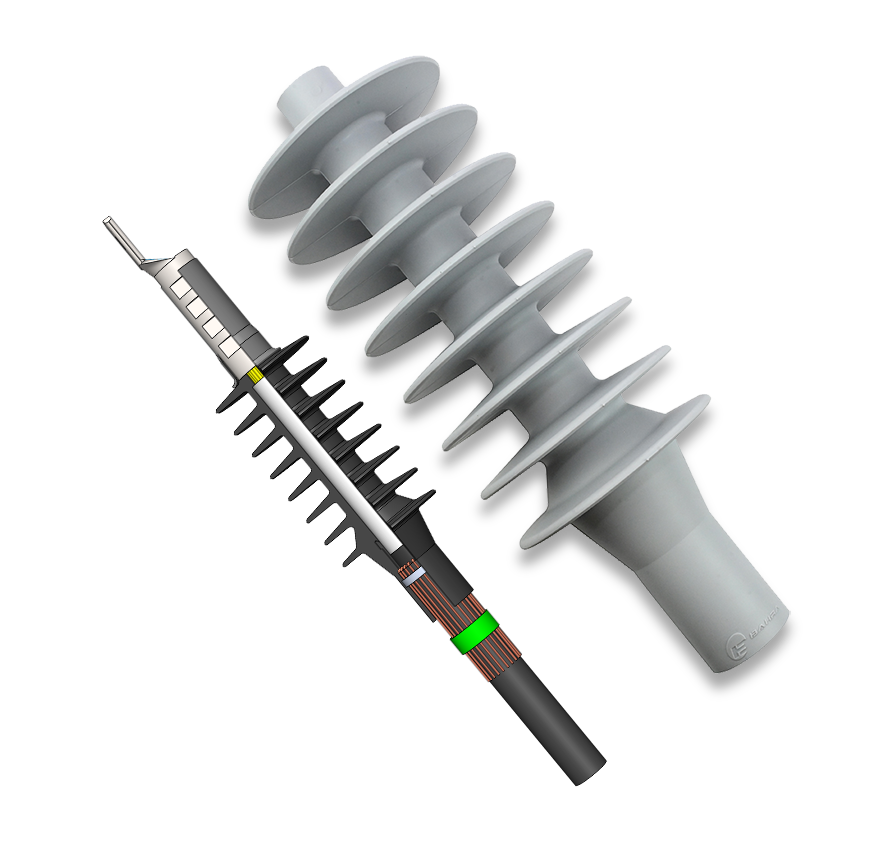

Outdoor Terminations (TO), up to 36kV
- IEC 60502-4, IEEE 404, CENELEC HD 629.1, SEC SDMS-01 & SDMS-02
- Wide cross-section range: suitable for cables from 50 mm² to 800 mm²
- Silicone slip-on components for quick, safe, and easy assembly
- One-piece design with integrated geometric stress control system
- Ready for immediate operation
- Short body long creepage distance by optimized shed arrangement
- Use of various cable lug types
- Outdoor application
- Air insulated switch gear or transformer
- One-piece slip-on silicone cable terminations with geometry stress control element
- Sealing tape
- Assembly instructions
- Compression or mechanical cable lugs
- Earthing kit
- Antitracking tube
- Trifurcating boot
- Traceability ID marker
- Silicone grease
05

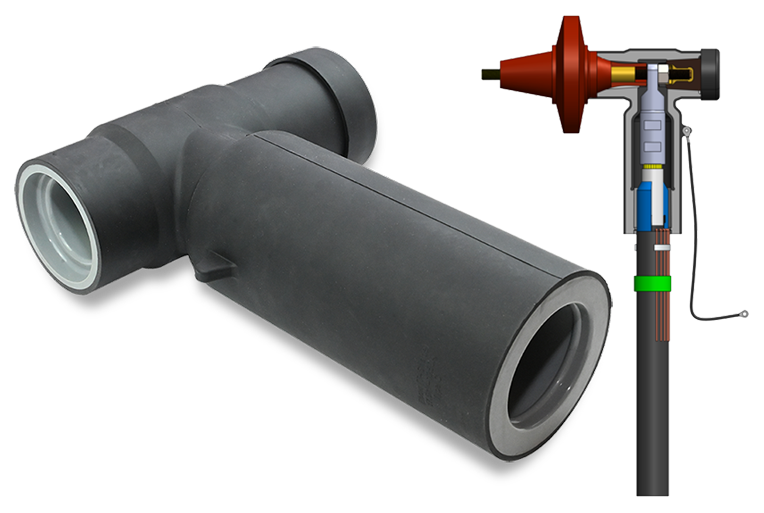

Separable Elbow-Type Connector (T-Body) (ETS), up to 36kV & 1250A
- IEC 60502-4, IEEE 404, CENELEC HD 629.1, SEC SDMS-01 & SDMS-02
- With fully shielded outer layer
- Require No special tools for installation
- Premolded with outer shielded thickness 3 mm
- Applicable for Aluminum and copper conductor
- Elbow connector with bolt that meet all the requirements of IEEE386
- Tested individually
- With Compression OR Mechanical connector as per customer request
- Outdoor application
- Air insulated switch gear or transformer
- One-piece slip-on silicone cable terminations with geometry
- Stress control element
- Sealing tape
- Assembly instructions
- Compression or mechanical cable lugs
- Earthing kit
- Antitracking tube
- Trifurcating boot
- Traceability ID marker
- Silicone grease
- Straight boot
